Talon Crankset by NSB

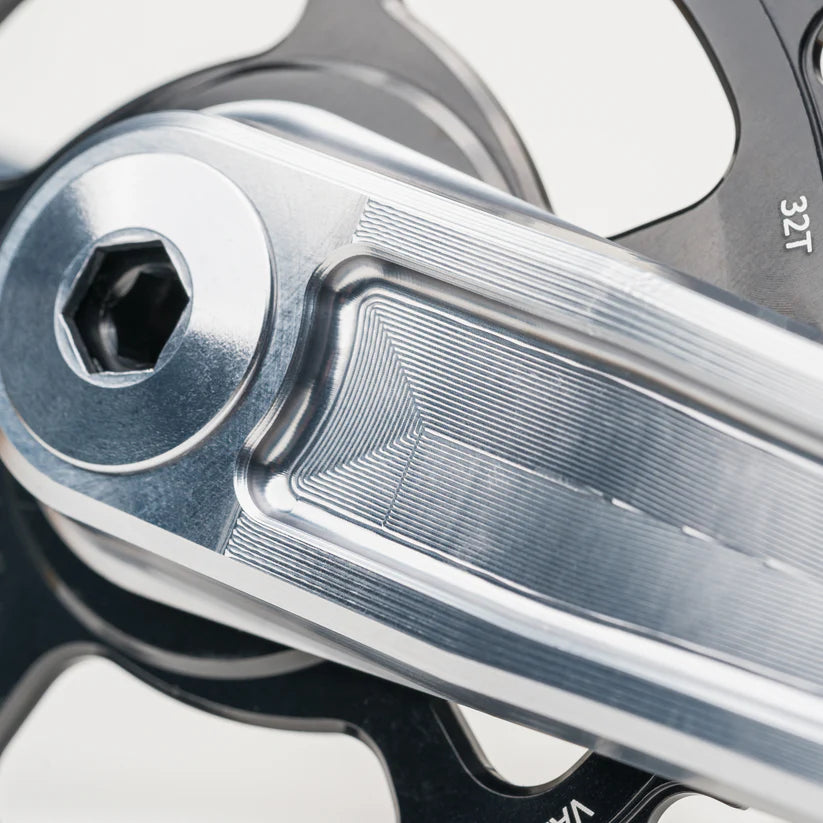

Designed and manufactured in Canada, the Talon crankset is CNC-machined from solid 7075-T6 aluminum in North Shore Billet’s Whistler workshop.
It’s built for riders who demand maximum durability, stiffness, and mechanical reliability.

After more than two years of intensive testing — both in-house and in the field with professional riders — the Talon was officially validated by EFBE Prüftechnik in Germany, a global reference for strength and fatigue testing.

Why is it available on Switch Components?

Simple: if you appreciate our philosophy and our products, you'll instantly recognize the same technical mindset behind NSB’s work.
Switch Components and North Shore Billet share the same vision of gravity riding: refined, technical components made for those who don’t settle for stock builds.

That’s why we chose to offer the best of North Shore Billet’s lineup exclusively for the Italian market, directly through our site and communication channels.

Tech specs

• CNC-machined from 7075-T6 aluminum

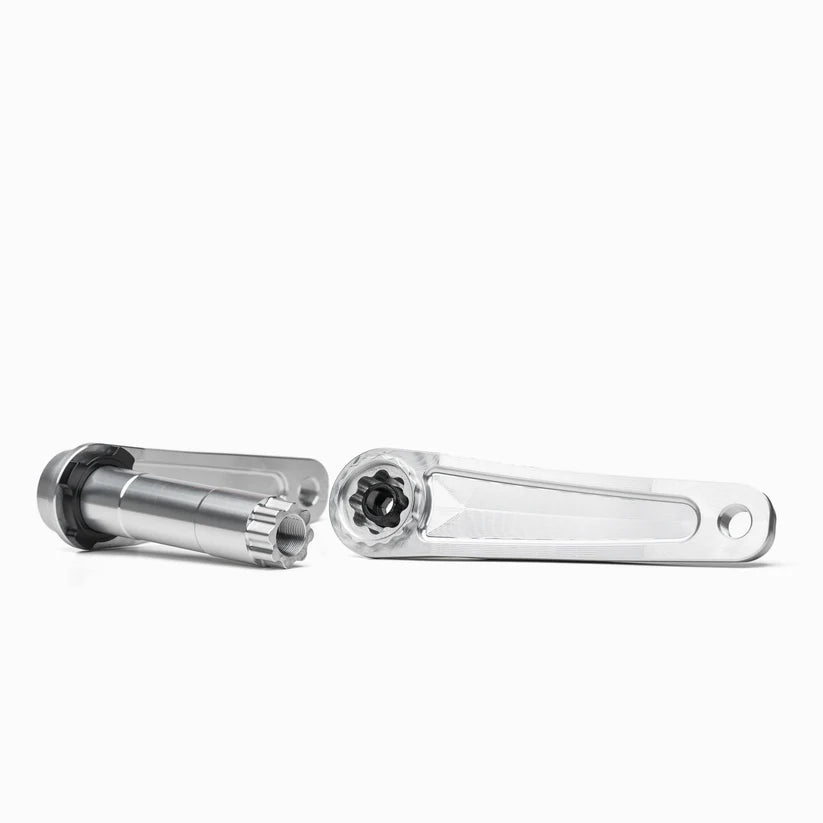

• Three-piece design with 30mm spindle

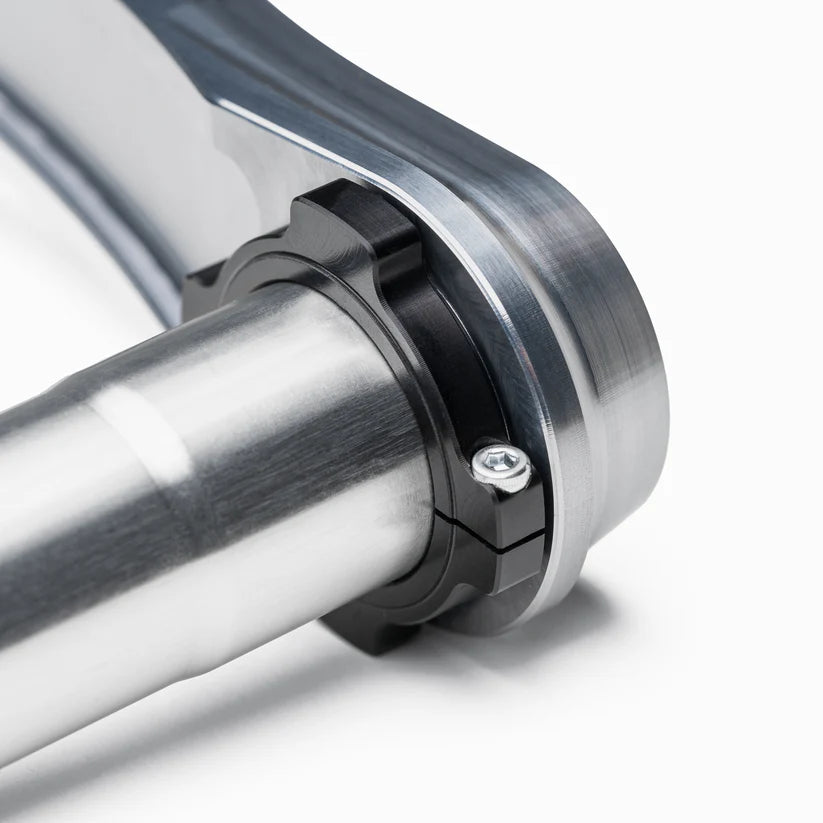

• Includes aluminum preload adjuster

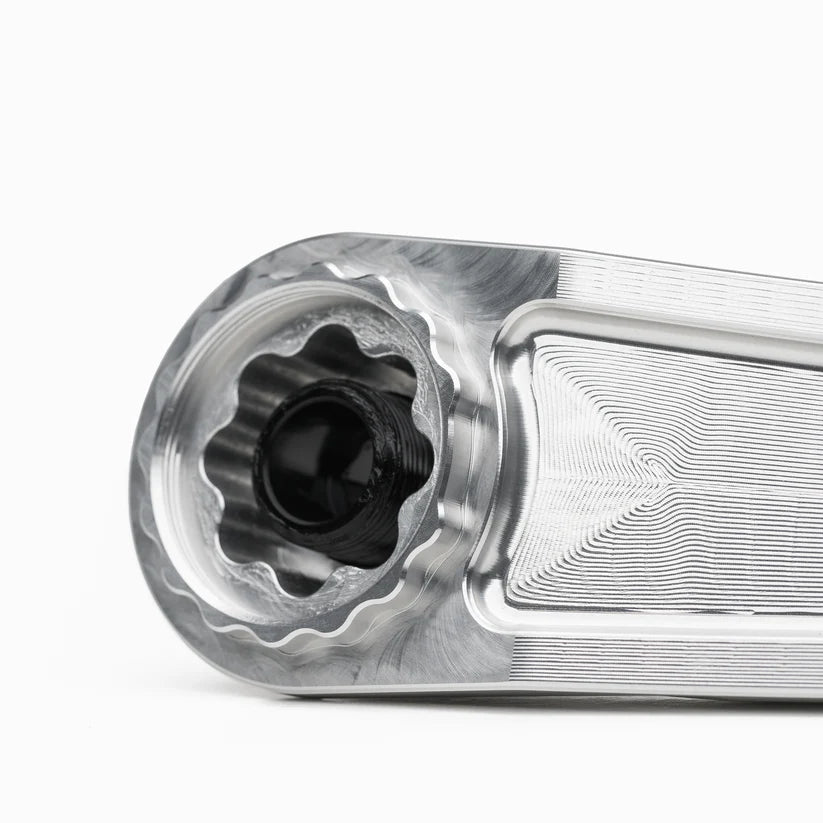

• Cinch chainring interface

• Anodized finish

• Available lengths: 155mm, 160mm, 165mm

• Weight: from 630g (155mm with 133.5mm spindle) to 670g (165mm)

Compatibility

133.5mm spindle

• For enduro bikes with 73mm bottom bracket (threaded or PF92)

• Q-Factor: 171.4mm

• Chainline: 52mm (with 3mm offset ring), 55mm (with 0mm offset ring)

148.5mm spindle

• For downhill bikes with 83mm or PF107 bottom brackets

• Q-Factor: 186.4mm

• Chainline: 56.5mm (with 6mm offset ring)
